Cross ventilation: why two windows are not the same as air moving

Cross ventilation is the most over-claimed specification in Indian housing, and the least understood. It appears in almost every brochure. It is almost never explained. And it is one of the very few claims a buyer can test personally, standing in a show flat, in about five minutes.

What it actually requires

Air moves because of a pressure difference, not because there are windows. When wind hits a building, the face it strikes goes to a higher pressure and the faces at the sides and behind go to a lower one. Open something on the high-pressure side and something on a low-pressure side, and air flows from one to the other, through whatever is in between.

That is the whole mechanism, and it has three requirements:

• An inlet. An opening on one external face.
• An outlet. An opening on a different external face — different enough to be at a different pressure.
• A path. An unobstructed route between them, through the home.

Miss any one and there is no cross ventilation, whatever the marketing says. Two windows on the same wall give you an inlet and a second inlet. Very large windows on one wall give you a bright room with still air. A generous balcony on a single face gives you a lovely place to stand and no airflow behind it.

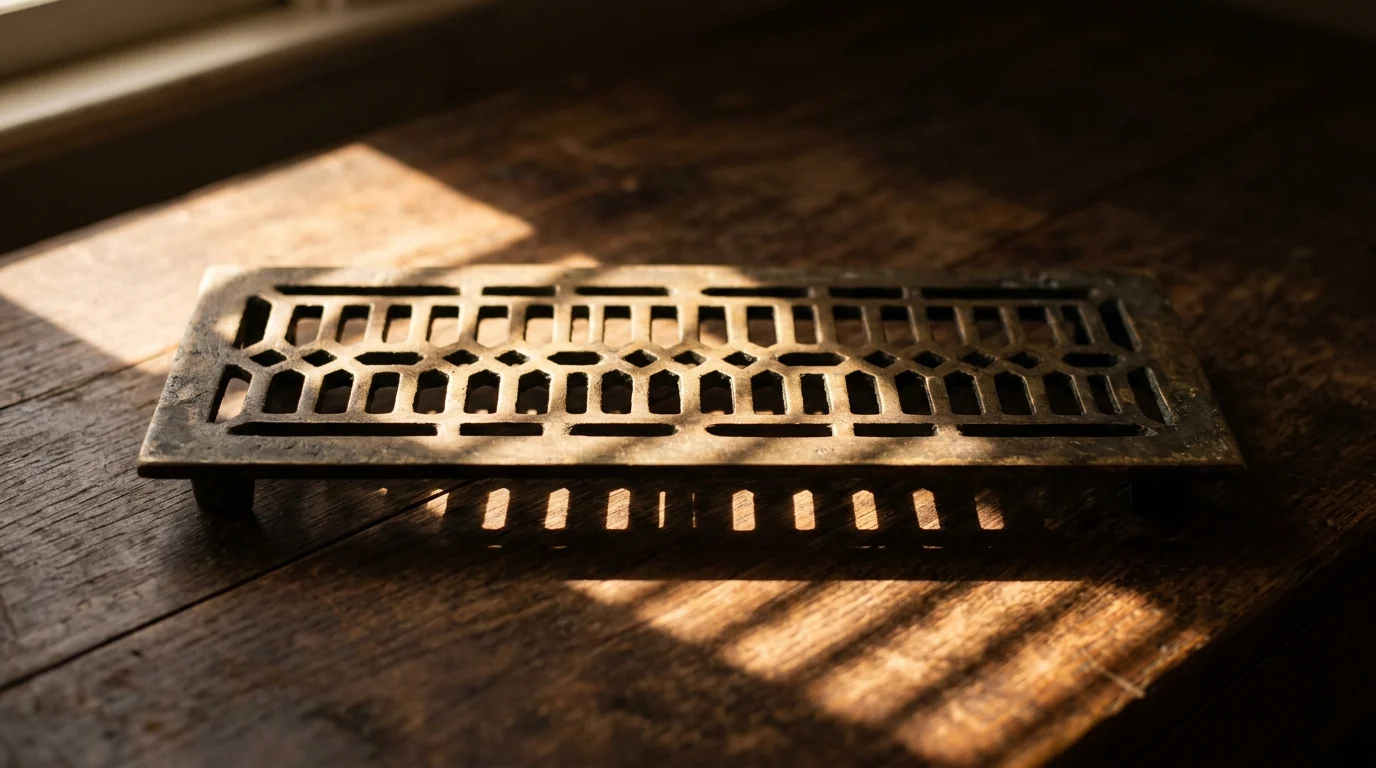

There is a second driver worth knowing, which works when the wind does not. Warm air rises, so an opening high on one side and low on another produces a stack effect — weaker than wind, but it is what moves air on a still night. A high-level ventilator above a door or window is not a decorative hangover from older buildings; it is the outlet that keeps working when the wind drops.

Single aspect, dual aspect, corner

Single aspect means every window in the home is on one external face. This is the standard condition in a double-loaded corridor building — flats on both sides of a central passage, each one looking out in a single direction. A single-aspect flat cannot cross ventilate. It can be bright, well-planned and pleasant; the air in it will move only when it is pushed mechanically.

Dual aspect means openings on two external faces. This is the precondition for airflow, and it is created by planning — a shorter corridor, a scissor plan, a building with a slot or a court in it — rather than by luck.

Corner units are dual aspect by geometry, and that is why they carry a premium. But the two faces of a corner unit are adjacent rather than opposite, so the pressure difference between them is usually smaller than between two opposite faces. A corner unit is a good starting point and not an automatic answer.

Why a corner unit is not automatically better

Three things regularly defeat one:

The internal core — the bathroom stack, the utility shaft, the kitchen back wall — often sits exactly between the two aspects, because that is the efficient place to put wet services. Air cannot pass through it.

The door discipline of an actual household: bedroom doors are shut at night, which is precisely when you want the air moving. If the only path between the two aspects runs through a bedroom, the path is closed for eight hours a day.

The orientation: two faces at ninety degrees can both sit in the same pressure zone depending on wind direction, and if the prevailing wind arrives on the diagonal, both openings behave like inlets.

Internal doors, undercuts, and the path air has to take

This is the part almost nobody looks at, and it is the difference between a plan that ventilates and one that does not.

Air moving from a bedroom window to a living room window has to pass a bedroom door. If that door is shut and fits tightly to the floor, the path is blocked. A door undercut — a deliberate gap of a few millimetres between the bottom of the door leaf and the finished floor — restores the path without opening the door. It is a small, cheap detail that controls whether a closed-door home ventilates at all.

Look also at the sequence of spaces. A path that runs window, room, doorway, corridor, doorway, room, window has more resistance at each constriction. Shorter and straighter is better, and a plan where the living and dining spaces connect two aspects directly is worth more in comfort than an extra window on one face.

Kitchens and bathrooms: extract is not ventilation

Wet and smelly spaces are handled differently on purpose. A kitchen chimney and a bathroom exhaust fan are mechanical extract: they remove air at the source, before moisture and odour disperse into the rest of the home, and they discharge it into a shaft.

That is a good design and it is doing a different job. Extract creates a small negative pressure in one room; cross ventilation moves air through all of them. A home that relies on extract alone will still be still.

One practical consequence: extract needs make-up air. An exhaust fan in a sealed bathroom with a tight door will hum and move very little. The same door undercut that helps cross ventilation is what lets the extract work.

The Bengaluru case

Bengaluru is one of the few large Indian cities where good ventilation substitutes for mechanical cooling through much of the year rather than merely supplementing it. A well-ventilated flat here is one where the evening air does the work an air conditioner would otherwise do — which shows up as comfort first and on the electricity bill second.

The city's other characteristic matters too: humidity swings and long wet spells. Air movement is what dries a bathroom, keeps a wardrobe wall from going musty and stops condensation collecting behind furniture on an external wall. Still air in a wet month is a maintenance problem, not only a comfort one.

The five-minute test, in a show flat

1. Find the external faces. Stand in the entrance and work out how many different directions the home opens to. One is single aspect. Answer this before you look at anything else.
2. Open everything. All windows, all balcony doors, all internal doors.
3. Stand in the middle and wait. You are feeling for air on your skin, not looking at a view. A dozen seconds is enough.
4. Use a tissue. Hold a light tissue or a strand of hair at an open window and watch which way it moves — and whether it moves at the other window too. Air entering one and leaving the other is the thing you came to verify.
5. Now close the bedroom doors and repeat. This is the real test, because it is the condition the home is actually in at night.
6. Look at the bottom of the internal doors. Is there an undercut, or does the leaf meet the floor?
7. Check the high-level openings. Any ventilator above a door or window is your still-night outlet.

What to read off the floor plan before you go

Count the external faces the unit touches. Trace a line from an opening on one face to an opening on another and see how many doorways it crosses. Note where the wet core sits — if it is between the two aspects, the path goes around it. Find the north point and the block layout, and see whether the neighbouring tower stands directly in front of your main aspect. A plan tells you most of this before you spend a Saturday driving to site.
